Bypass Bar

Original price was: £230.00.Current price is: £161.00. +VAT

16A MBS suitable for all IEC in/out UPS to 3KVA. Rack/Wall mount or free standing. Built in PDU with 16A and 4x10A outlets. LED indicator

Tags: , ,

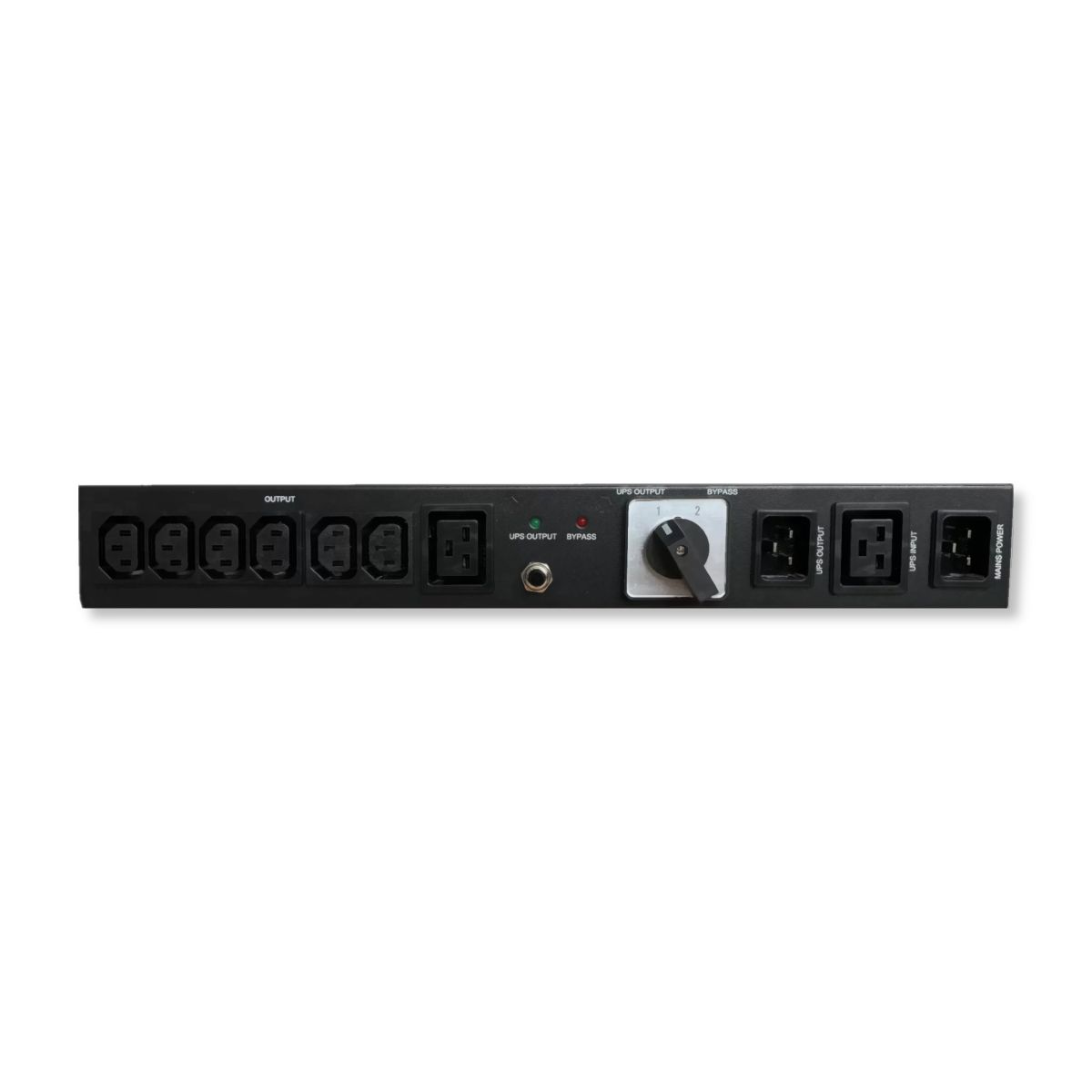

A 16A Maintenance Bypass Switch (MBS) 19inch rack or wall mountable.

It allows the removal of a UPS without loss of power as the load can seamlessly be transferred to utility power.

This unit is suitable for all UPS 3KVA and below.

The MBS is also a Power Distribution Unit (PDU) with a 16A IEC and 6x10A IEC output connections.

The device has 2 LED indicators, a RED Bypass LED that shows the system is in bypass and a GREEN UPS Output LED that shows UPS Output Power is available.

The rotary switch is a fast acting break-before-make switch ensuring that if inadvertently operated before UPS is set to bypass mode no feedback damage can occur.

Dimensions (WxDxH) mm440 x 180 x 60
Weight (kg)2.2
Output Connection1xC19, 6xC13
Warranty1 Years
  • 16A Mains Lead
  • 2x16A IEC C19/20 Loop Leads
  • 16A C19/20 to 10A C14/13 M-F and F-M Adapter leads
