The S3 Lithium Ion UPS is a fully integrated system encompassing UPS (6-40KVA), power distribution and hot swappable Lithium Ion batteries in one cabinet.
Overview

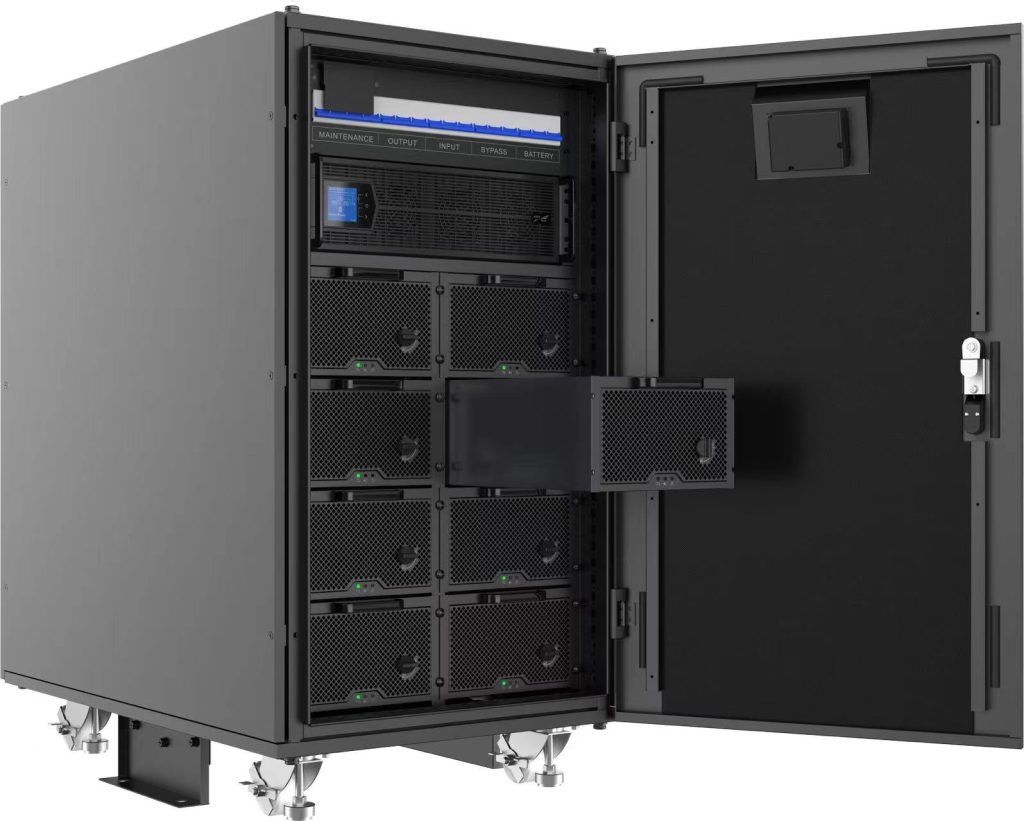

- 2 Cabinet styles for either 8x 40/50Ah battery modules or 4x 100Ah modules
- Built in circuit breakers including maintenance bypass
- 6 or 10KVA Single phase UPS module or
- 10, 20 or 40KVA 3phase UPS module

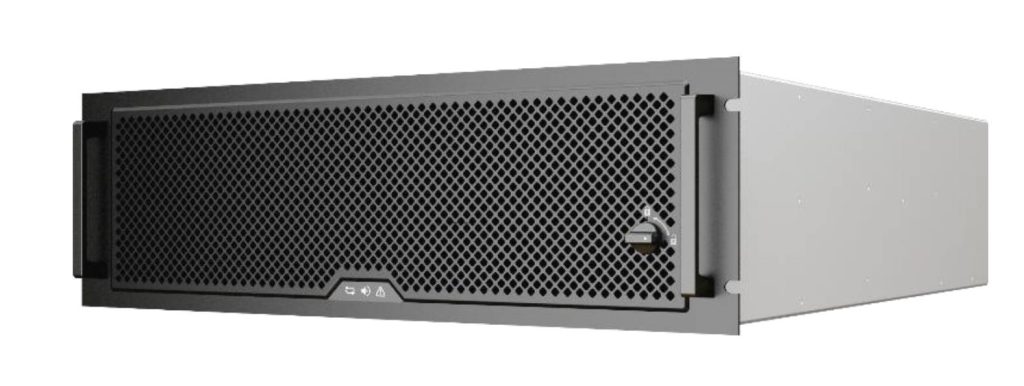

- Hot Swappable Lithium Ion Battery Packs in either 40/50Ah (max 8) or 100Ah (max 4) capacities

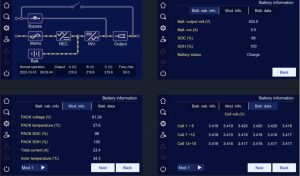

- Touch Screen LCD built into door cabinet
The S3 Philosophy: Safe, Smart, Simple.
SAFE
- DC/DC Isolation
- Physical Double Insulation
- Fire Protection
- Automatic Disconnection on Failure
Smart
- Intelligent Current Equalisation
- Fault Recording, early warning of failure
- Adaptive State of Charge Management
- Allows old and new battery modules to be used together
Simple

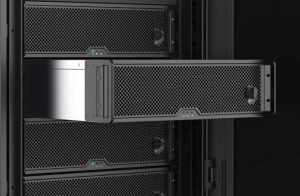

- Hot Swappable Design exchanged in minutes
- Easy to Maintain
- Flexible for expansion
Battery Configuration
There are 3 battery modules. Either 40Ah or 50Ah for the 8 battery cabinet or 100Ah for the 4 battery cabinet. The 40 & 50Ah modules are rated for 10KW, whereas the 100Ah is rated for 5KW. So, for example the 20KW UPS would require 2x 40/50Ah modules minimum or 4x 100Ah modules.
| UPS Module | 40Ah (2.3KWh) | 50Ah (2.88KWh) | 100Ah (5.76KWh) |
|---|---|---|---|
| 6KW 1Φ | 1-8 | 1-8 | 2-4 |
| 10KW 1Φ / 3Φ | 1-8 | 1-8 | 2-4 |
| 20KW 1Φ / 3Φ | 2-8 | 2-8 | 4 |
| 30KW 3Φ | 3-8 | 3-8 | – |
| 40KW 3Φ | 4-8 | 4-8 | – |
Runtime Calculator
Your screen width is too small. Try turning to landscape mode.
| Number of Battery Modules | ||||||||
| Battery Module | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 40Ah | ||||||||
| 50Ah | ||||||||
| 100Ah | ||||||||
