Battery Block Sealed Lead Acid 12V 9Ah

£25.00£165.00 +VAT

Valve Regulated Sealed Lead Acid Battery Block. 12V 9Ah.

SKU: 6FM-9
Category:
Tags: , ,

Description

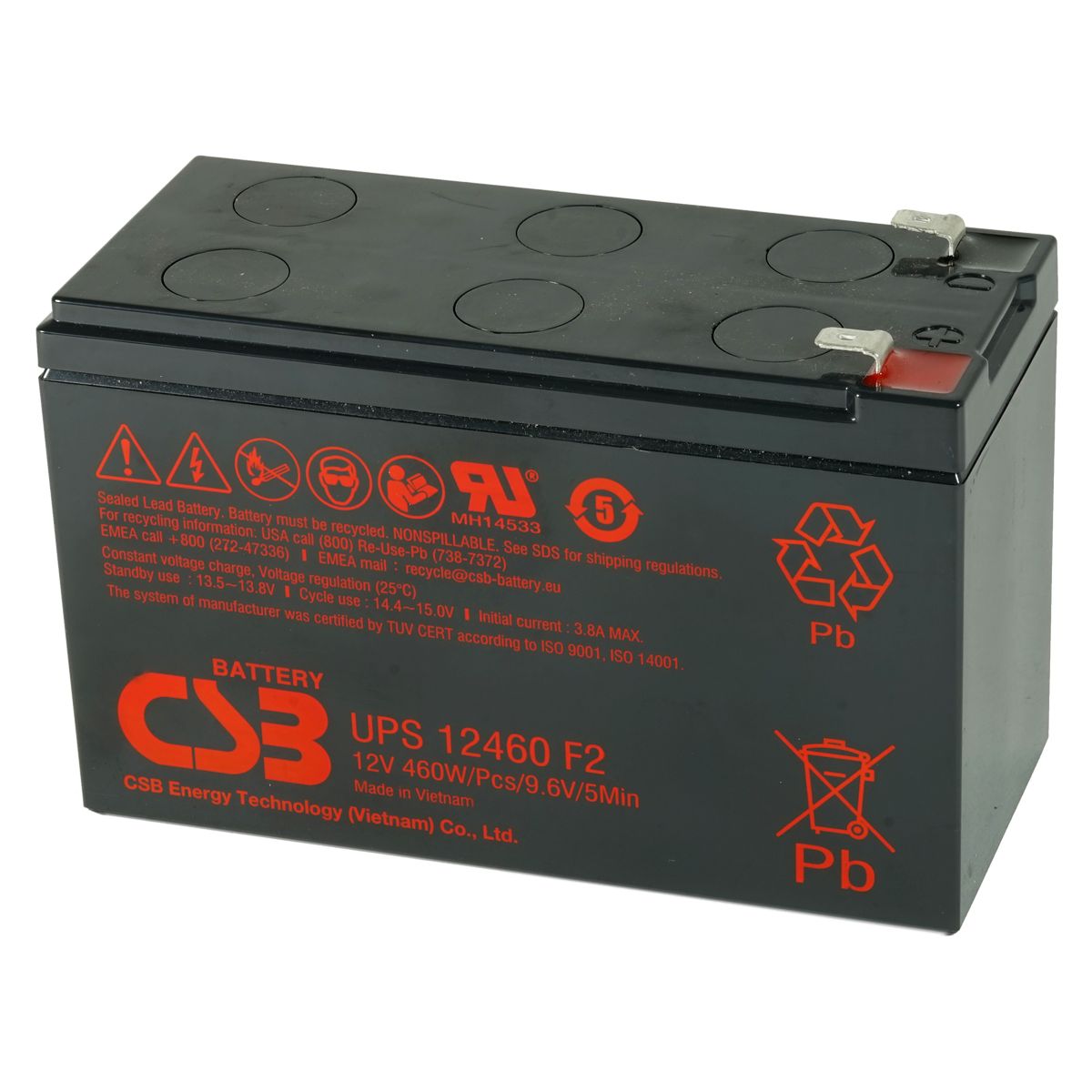

CSB UPS 12460 SEALED LEAD ACID RECHARGEABLE BATTERY

  • Designed for high rate discharge use with Uninterruptible Power Supplies (UPS)
  • Next generation design with ultra thin plates for optimum high rate performance
  • Maintenance free sealed lead acid battery with AGM technology
  • Rated for up to 5 years life in standby use

Specification

  • Manufacturer: CSB
  • Battery Type Number: UPS12460
  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity Rating: 460W
  • Dimensions: 151mm x 65mm x 94mm
  • Weight: 2.50Kg
  • Terminal: F2 Terminal (0.25″)

Info

  • Commodity Code / HS Code – 85072020
  • Shipping Info – Conforms to Special Provision A67 / UN2800

Compatibility List

This product is compatible with the majority of Power Inspired UPS. For products that use 12V 7Ah, this block can be used in it’s stead – which will provide extra runtime.

Number of Blocks Compatible Unit
1

VIX2060
VIX3065
VIX3065+

2

VFI1000C
VFI1000T
VIS1000B
VIS1500G
VIS2000B
VIX1000N
VIX2000N
VIX2120
VIX2150
VIX3100
VIX3100+
VIX3200
VIX3200+

3

AG500
TX1000D
VFI1500B (In tray)
VFI1500RT+ (In tray)
VFI1500T+

4

VFI2000RT+

6

AG1500S (Cab)
TX3000
VFI3000B (In tray)
VFI3000RT+ (In tray)

8

AG1500 (Cab)

Dimensions (WxDxH) mm65 x 151 x 94
Weight (kg)2.7
Output ConnectionF2 (6.3mm) Tabs

MSDS

Datasheet
